Engine Air Scoop

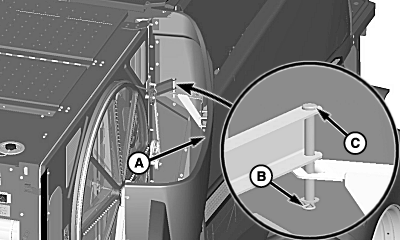

H99447
H99447-UN-15DEC10

A - Engine Air Scoop

B - Spring Pin

C - Pin

Verify engine air scoop (A) is outward for field position and inward for transport position.

    Field Position:

  1. Remove spring pin (B) and pin (C).
  2. Move air scoop outward until hole aligns with bracket.
  3. Install previously removed hardware to retain air scoop in place.
  4. Clean rotary screen and radiator of crop debris or foreign material.

    Transport Position:

  1. Remove spring pin (B) and pin (C).
  2. Move air scoop inward until hole aligns with bracket.
  3. Install previously removed hardware to retain air scoop in place.
  4. Clean rotary screen and radiator of crop debris or foreign material.
