Starting the Engine

  1. CAUTION:

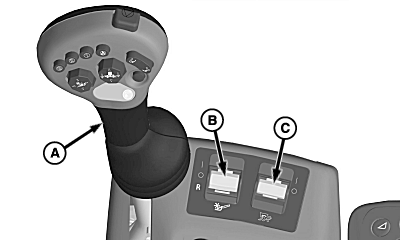

    H95320
    H95320-UN-11FEB10

    A - Multi-Function Lever

    B - Header Engage Switch

    C - Separator Engage Switch

    Before starting engine, make sure that everyone is clear of machine. Sound horn to warn others.

    Engine exhaust fumes can cause sickness or death. If it is necessary to run an engine in an enclosed area, remove exhaust fumes from area with an exhaust pipe extension.

    If you do not have an exhaust pipe extension, open doors and get outside air into area.

    Move multi-function lever (A) to neutral position.


  2. Verify that header engage switch (B) and separator engage switch (C) are OFF.

  3. CAUTION:

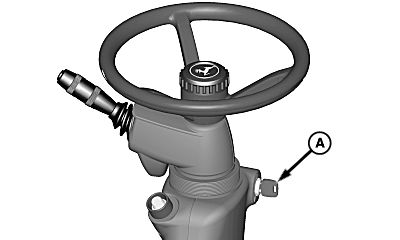

    H95321
    H95321-UN-02NOV10

    A - Key Switch

    Sound horn before starting engine to warn others to stay clear from machine.

    To avoid the possibility of personal injury or death, start engine ONLY from operator seat. Do not start engine by shorting across starter terminals. Machine will start in gear if bypassed.

    IMPORTANT: To prevent starter damage, do not operate starter for more than 30 seconds at a time. If engine does not start, wait at least two minutes before trying again.

    NOTE: If temperature is below -5 °C (23 °F) it may be necessary to use cold weather starting aid, (see Cold Weather Starting Aid in Operating the Engine section).

    When key switch is turned to START, a delay of a couple of seconds will occur. This allows control units to power up, relays to close, and starter solenoid to energize.

    Decal under storage box lid on the armrest shows engine starting information.

    Sound horn and turn key switch (A) located on steering column to START position.

    Key positions are:

    First Position .............. Accessories

    Second Position .............. OFF

    Third Position .............. Run

    Fourth Position .............. Start


  4. NOTE: Diagnostic Trouble Codes (DTC) will display if Stop Engine Code appears on display. Display stops normal functions, indicating a problem that requires the machine be stopped and the problem corrected immediately. Codes are displayed until the problem is resolved. If problem cannot be resolved, see your John Deere dealer.

    Release key after engine starts and let engine run at low idle for five minutes to warm oil.

OUO6075,0000581-19-20101213
