Lubrication Decal Locations

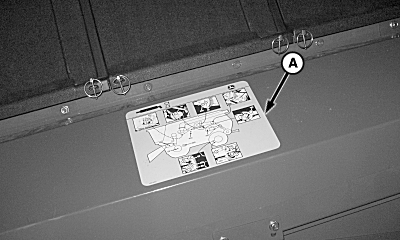

H97176
H97176-UN-30JUN10

Left-Hand Lubrication Decal

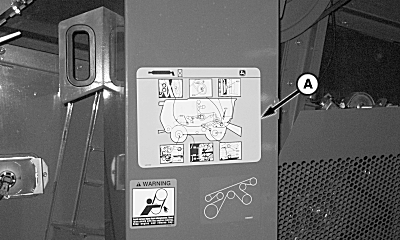

H97177
H97177-UN-30JUN10

Right-Hand Lubrication Decal

A - Lubrication Decals

Lubrication decals (A) show the different locations of grease points around the machine. Follow lubrication times provided on decals and refer to hour intervals listed in this section for further information.

Bearing failures or overheating can result in a fire. To reduce bearing failures or overheating, follow hour intervals listed in this section for further information.

Crop material and other debris may accumulate around bearings and bearing covers. Inspect and clean these areas periodically throughout the harvest day.
