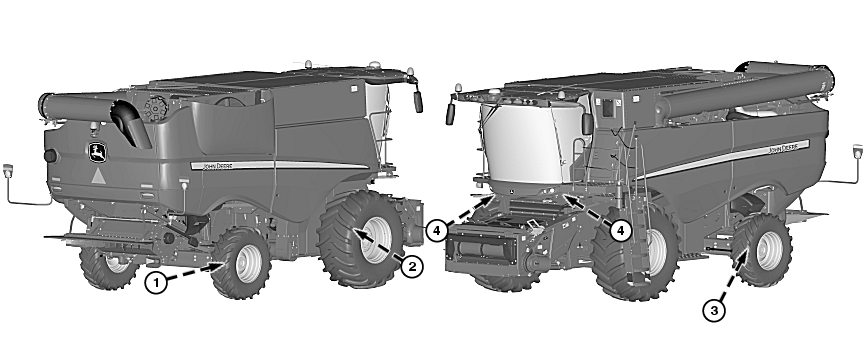

Every 10 Hours

1. NOTE:


   H96440-UN-11AUG10


   H86769-UN-01NOV06


   H97603-UN-25AUG10

   A - Drain Hose

   When operating in mud and water, grease rear axle spindle bearings and motor pivots every 10 hours. Normal conditions grease every 50 hours.

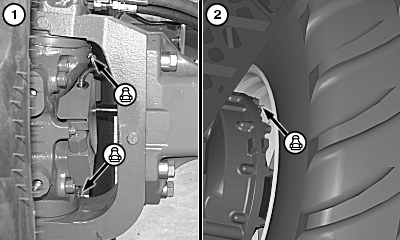

   Two Speed Four Wheel Drive Motor Pivots - Grease two fittings (both sides).

---




2. Final Drive Outer Bearings - When operating in mud and water, grease fitting (both sides) every 10 hours. Normal conditions grease fitting (both sides) every 50 hours.

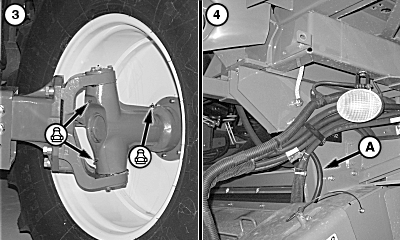

3. Two Wheel Heavy Duty and Extra Heavy Duty Axle Spindle Bearings/Pivot Pins - When operating in mud and water, grease fittings (both sides) every 10 hours. Normal conditions grease fitting (both sides) every 50 hours.

4. Air Conditioning Drain Hose - Clean air conditioning drain hose (A) on both sides of cab.
