Cab Ladder Positions (Dual Tire Configuration)

CAUTION:

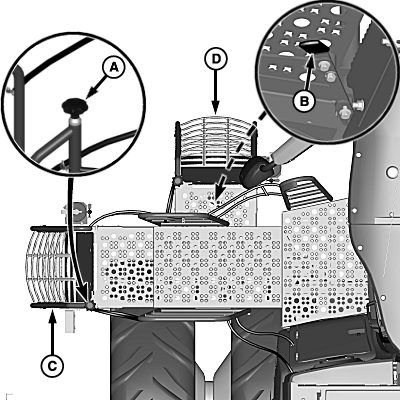

H96380-UN-14MAY10

A - Handle

B - Lever

C - Field Position

D - Roadway Driving Position

Ladder can be positioned from ground or on ladder landing with handle (A) or lever (B).

If ladder latch appears loose, clean out latch pin area. Do not use oil or grease in this area.

Swing ladder forward or rearward and lock into these different positions:

• Position (C): is for normal operating field conditions.
• Position (D): is for transporting machine on public roadways.

CAUTION: Always swing ladder to position (D) before transporting on public roadways in order to reduce machine width and position amber warning light towards oncoming motorists.
