ClimaTrak™ Automatic Temperature Control

H96249-UN-30APR10

H96250-UN-30APR10

Fan Speed

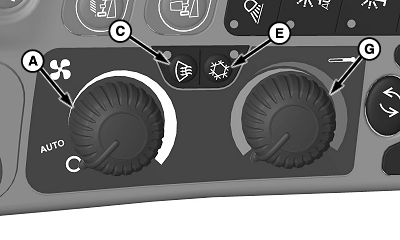

Fan Speed Control Dial (A): adjusts fan speed and amount of air coming out of louvers.

• Off Position - all power to system is OFF.

• Automatic Position - fan speed determines difference between selected temperature and actual cab temperature.NOTE: As temperature approaches setpoint, fan speed decreases.

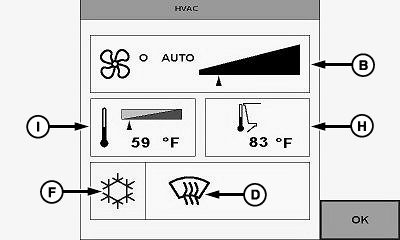

Fan Speed Indicator (B): indicator arrow moves in relation to desired fan speed adjusted setting.

Defrost

Defrost Switch (C): activates heater to warm cab.

NOTE: Switch indicator light illuminates when switch is ON.

• Defrost helps remove moisture from air even in heat mode.

Defrost Indicator (D): toggles icon ON/OFF when defrost switch is pressed.

Air Conditioner

Air Conditioner Switch (E): activates air conditioner to cool cab.

NOTE: Switch indicator light illuminates when switch is ON.

Air Conditioner Icon (F): toggles icon ON/OFF when air conditioner switch is pressed.

Temperature Control

Temperature Control Dial (G): adjusts temperature of cab. Turn dial to red zone to increase temperature and blue zone to decrease temperature.

NOTE: Outside ambient temperature (H) shows current air temperature.

Temperature Control Indicator (I): indicator arrow moves in relation to desired temperature adjusted setting.
