CommandTouch Multi-Speed Feeder House Drive Belt—Replacing

CAUTION:

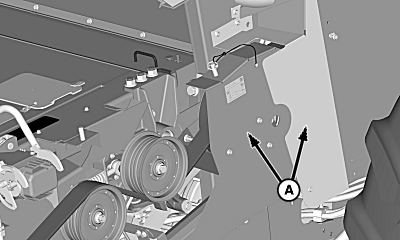

H90968
H90968-UN-05MAR08

A - Shields

Shut OFF engine, set parking brake and remove key.

Lower safety stop and remove left-hand feeder house shields.

Remove shields (A).

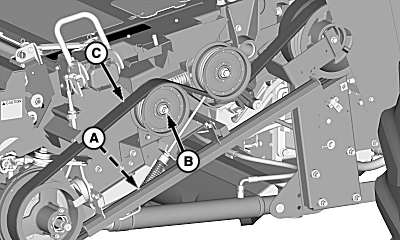

H90969
H90969-UN-05MAR08

A - Nuts

B - Idler Nut

C - Drive Belt

Loosen nuts (A) to relieve tension on drive belt and loosen idler nut (B).

Remove drive belt (C) from sheaves.

Install replacement drive belt and move idler to 3/4 of way up slot and tighten idler nut.

Tighten nuts to position washer between end of gauge and bottom of step.

Install feeder house shields previously removed.

OUO6075,0000653-19-20100202
