Stone Trap
CAUTION:

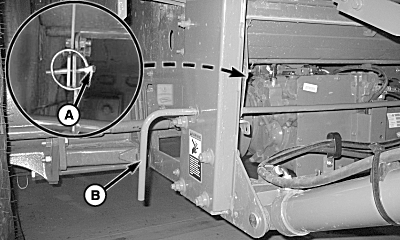

H99239-UN-01DEC10
A - Quick-Lock Pin
B - Lever
Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.Stone trap protects the cylinder and concave from rock or stone damage.
Remove quick-lock pin (A) and move lever (B) up to open stone trap.
Move lever down to close stone trap. Retain with quick-lock pin.
OUO6075,000065C-19-20101201 |
