Feeder House Slip Clutch
CAUTION:

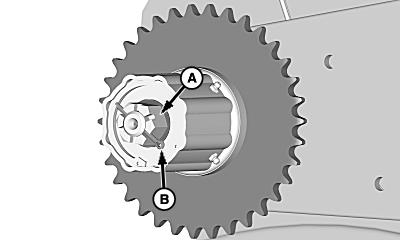

H86504-UN-28AUG06
A - Castle Nut
B - Cotter Pin
Shut OFF engine, set parking brake and remove key.The slip clutch protects the upper shaft, conveyor, and drive chains.
If the slip clutch is removed, tighten castle nut (A) to specification and install cotter pin (B).
| Item | Measurement | Specification |
| Castle Nut | Torque | 350 N˙m (258 lb-ft) |
OUO6075,0000663-19-20100202 |
