Turn Signals
NOTE:

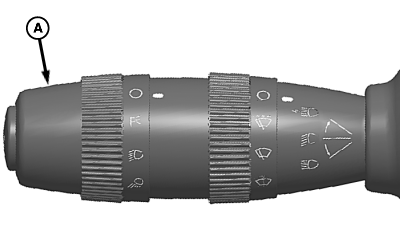

H95266-UN-26APR10
A - Turn Signal Lever
Turn signals operate anytime key switch is ON. With field light switch ON, turn signal lever actuates either right or left row finder light. Turn signals are not self-cancelling, so lever must be moved to neutral position.When operating machine on road or highway, use turn signal lever (A) to indicate turns.
With hazard light switch ON and turn signal lever OFF, warning lights operate at 60 flashes per minute. When turn signal is set for a right-hand turn, the right-hand warning light will flash 85 flashes per minute while the left-hand warning light stays solid (not flashing). The opposite happens for a left-hand turn.
NOTE: Indicator lights (left or right) on cornerpost illuminate and indicate a turn.
OUO6075,0000682-19-20100608 |
