Break-In Check After 375 Hours (Interim Tier 4/Stage III B)

H95309
H95309-UN-11FEB10

H95397
H95397-UN-17FEB10

A - Drain

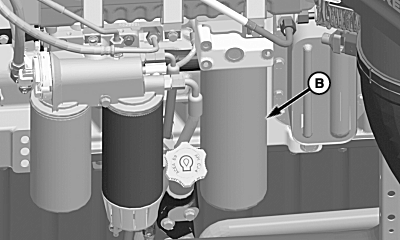

B - Oil Filter

Drain crankcase oil by opening drain (A) and close once oil is drained.

Remove and retain cap and dispose of oil filter (B) properly.

Install oil filter and retain with cap.

Fill crankcase with proper amount of engine oil (see Diesel Engine Oil in Fuel And Lubricants section for oil specification).

OUO6075,00006B2-19-20101027
