Engine Oil Level (Tier 2/Stage II)

H95419-UN-19FEB10

H86717-UN-19OCT06

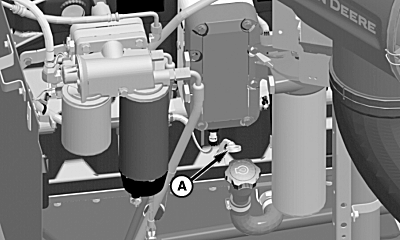

A - Dipstick

IMPORTANT: It is vital to maintain engine oil at correct levels to ensure a long service life. Check oil level with machine parked on level ground.

NOTE: Verify that dipstick is pushed completely into housing before removing to check oil level.

Remove dipstick and check oil level. Oil level should be between ”ADD” and top of cross-hatch area on dipstick. If oil level is below ”ADD” mark, add oil as needed, (see Fuel And Lubricants for oil recommendations).

Watch for leaks. Do not operate engine with oil level below ”ADD” mark.
