Cold Weather Operation
Fuel Tank

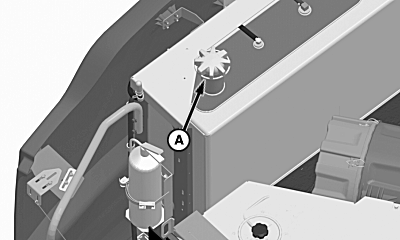

H95388-UN-16FEB10
A - Fuel Tank Cap
Remove fuel tank cap (A) and fill with winter grade fuel at the end of each day to prevent condensation.Fuel Tank Breather
H95387-UN-16FEB10
A - Fuel Tank Breather
B - Hose
Visually inspect fuel tank breather (A). Do not allow excessive amounts of chaff or debris to collect on breather. If breather is covered with debris, it does not allow fuel tank to breathe. Remove fuel tank breather from hose (B) and clean.Radiator
IMPORTANT:

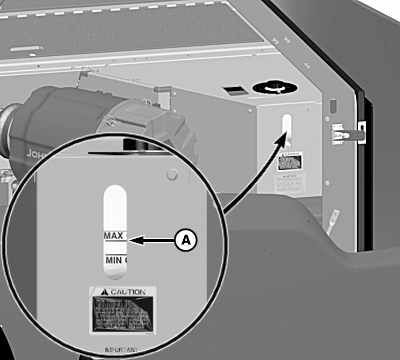

H95314-UN-11FEB10
A - Max Cold Line
Do not try to drain cooling system to protect against freezing. Heater does not drain completely, so freeze damage might result.Machine is shipped from factory with permanent type 50/50 ethylene glycol antifreeze mix.
Allow engine to cool. Coolant level in surge tank should be at ”Max Cold” line (A).
Leave antifreeze in cooling system all year long. If coolant is lost or drained, it must be replaced with the correct coolant and conditioner (see recommendations given in Fuels and Lubricants section).
After adding antifreeze, turn heater ON and run engine until it reaches operating temperature. This mixes the solution and circulates it through the system.
IMPORTANT: A special cap is used on the surge tank. If cap is damaged or missing, it must be replaced by an equivalent cap.

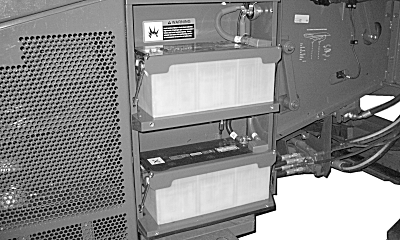

Batteries
H96581-UN-30JUN10
In freezing weather, do not add water to batteries unless engine is to be run for 30 minutes or more or batteries are charged after water is added.
Windshield Washer Reservoir
Fill windshield washer reservoir with automotive windshield washer solution.
