Every 200 Hours

1.
   H96427-UN-04AUG10


   H97457-UN-02AUG10


   H96170-UN-23APR10

   A - Recirculating Filter

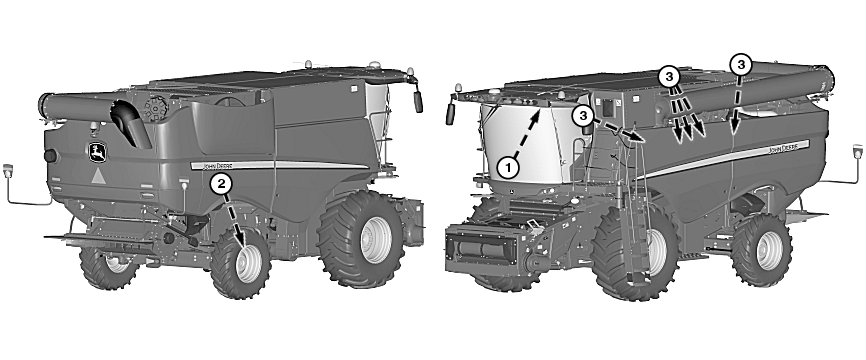

   Recirculating Filter - Remove cover to clean or replace recirculating filter (A).

---




2. Tire pressure and Bolt Torque - Check front and rear tire pressure and wheel bolt torque (see Ground Drive and Rear Axle section).

3. NOTE: Machines not equipped with multi-speed feeder house drive have one grease fitting.

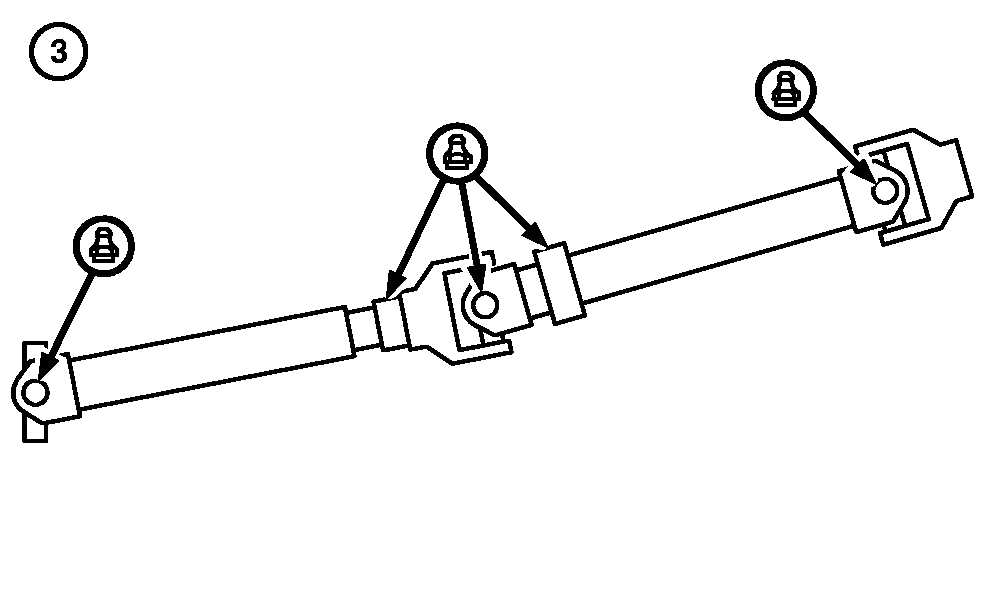

   Primary Countershaft (Multi-Speed Feeder House) - Rotate to access five fittings and grease.
