Windshield Wiper/Windshield Washer Switch

NOTE:

H96489
H96489-UN-20MAY10

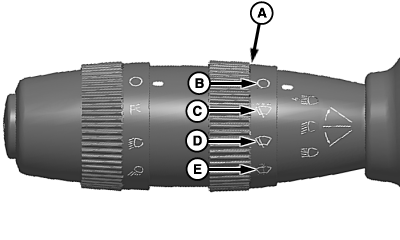

A - Windshield Wiper/Washer Switch

B - OFF Position

C - Wiper Intermittent Position

D - Wiper ON Position

E - Windshield Washer

Key switch must be ON or machine running for windshield wiper and windshield washer to operate.

Windshield wiper/washer switch (A) on steering column is used to control the following:

  • OFF Position (B)
  • Wiper Intermittent Operation (C)
  • Wiper ON Position (D)
  • Windshield Washer (E)
