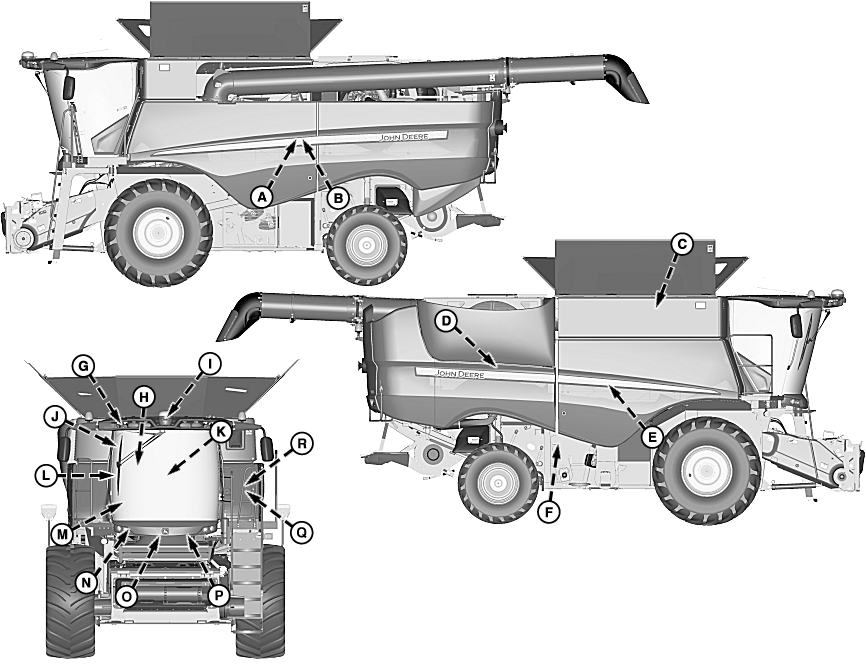

Control Unit and Power Module Locations

H96575
H96575-UN-08OCT10

A—

Left Control Unit 2 (LC2)

J—

GreenStar Display (Optional)

B—

  • Left Power Module 2A (LPM2A) (Optional)
  • Left Power Module 2B (LPM2B) (Optional)

K—

Steering Column Lever (SCL)

C—

Mass Flow Sensor

L—

Primary Display Unit (PDU)

D—

Engine Control Unit (ECU)

M—

  • Cab Control Unit (CAB)
  • Cab Power Module 2 (CPMB) (Optional)
  • Telematics (MTG)

E—

Moisture Sensor (AYM)

N—

Harvest Smart Feed Rate Control Unit (SFC) (Optional)

F—

  • Vehicle Control Unit (VCM) (Optional)
  • Right Control Unit (RCU)
  • Right Control Unit 2 (RCU2)
  • Right Control Unit (RCU)

O—

AutoTrac Control Unit (SSU) (Optional)

G—

  • Cab Power Module (CPMA)
  • HVAC Control Unit (ATC)

P—

ProDrive Transmission Control Unit (PTP) (Optional)

H—

  • Cab Switch Module (CSM)
  • Multi-Function Lever

Q—

Left Power Module 1 (LPM1)

I—

GreenStar Position Receiver (Optional)

R—

Left Control Unit (LC1)
