System Wakeup Power Fuse
H96580-UN-24MAY10

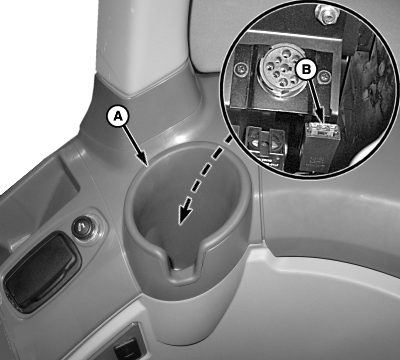

A - Cup Holder
B - 5 Amp. Fuse
Remove cup holder (A) to access fuse (B).Wakeup power is used to turn on control units when key switch is in ”RUN” position. It keeps electrical power connected to the control units after key switch is turned OFF. This also controls exit lighting and allows control units to save operating information into memory.
OUO6075,0000778-19-20100928 |
