Discharge Lights, Auxiliary Field Lights, Access Door Work Lights, Stubble Lights, Grain Tank and Unloading Auger Light—Replacing
H96617-UN-25MAY10

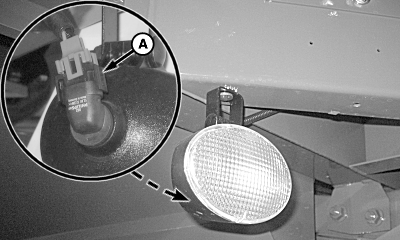

Right-Hand Stubble Light
A - Connector
Disconnect wiring harness connector (A) from bulb assembly.Turn bulb assembly counterclockwise and remove.
Remove and replace bulb.
NOTE: Replacement light bulbs are sensitive to skin contact. Wear protective gloves or avoid touching light bulb surface.
Push in bulb assembly and turn clockwise to install into housing and connect wiring harness.
OUO6075,0000781-19-20101104 |
