Cab Halogen Lights—Adjusting

CAUTION:

H96628
H96628-UN-25MAY10

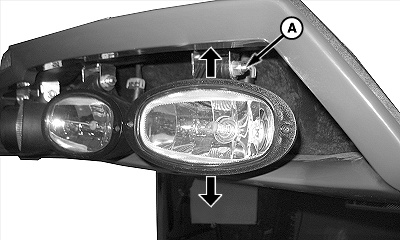

A - Cap Screw

Raise feeder house and lower safety stop before replacing or adjusting headlights.

NOTE: Light assemblies can be rotated up or down to achieve correct lighting angles. Refer to Cab Headlight Angle—Adjusting in this section for proper lighting angles.

Loosen cap screw (A). Rotate light assembly up or down to desired position and tighten cap screw. Repeat on remaining lights as needed.
