Armrest Control Console—Adjusting

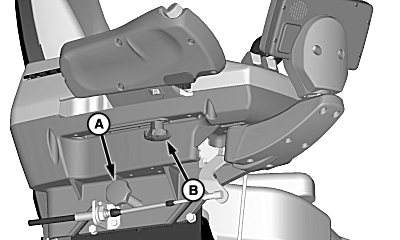

H97713
H97713-UN-20AUG10

A - Knob

B - Knob

Loosen knob (A) and slide armrest control console up/forward or down/back in slots on outer plate. Tighten knob to lock armrest into position.

Loosen knob (B) and slide CommandARM control console forward/rearward. Tighten knob to lock control console into place.

OUO6075,000078E-19-20100820
