Threshing Elements and Tines (XStream Rotor)—Remove and Install

Threshing Elements

1. IMPORTANT:

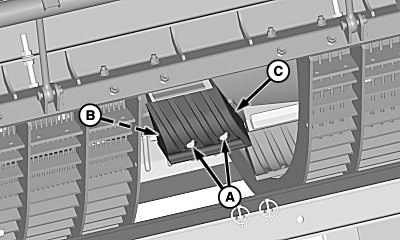

   H94732-UN-22SEP09

   A - Cap Screws

   B - Threaded Strap

   C - Threshing Element

   Rotor is a balanced assembly. Elements must be replaced in groups of three to maintain balance. When installing more than one kit, do not mix and match elements. Replacement kits are available through service parts and include cap screws with pre-applied Thread Lock and Sealer. Always use supplied cap screws. Elements that become loose may result in machine damage.

   Remove concave sections as needed to access threshing elements. (See Concave Sections—Remove and Install.)

---




2. Inspect wear on threshing elements using HXE30352 Clearance Gauge.

3. Remove and discard cap screws (A) and retain threaded strap (B) from threshing element (C) as needed.

4.

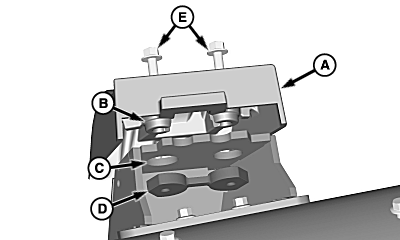

   H94747-UN-24SEP09

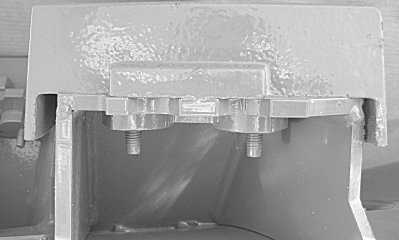

   H97768-UN-25AUG10

   Fully Seated

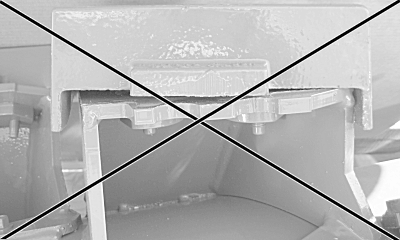

   H97769-UN-26AUG10

   Not Fully Seated

   A - Threshing Element

   B - Element Boss

   C - Rotor Base Hole

   D - Threaded Strap

   E - Cap Screws

   Install replacement threshing element (A) onto rotor base. (Use Threshing Element location diagram to identify threshing elements).

   Threshing Element Groups

   Group 1 Elements = 1, 2, 3

   Group 2 Elements = 4, 5, 6

   Group 3 Elements = 7, 8, 9

   Group 4 Elements = 10, 11, 12

   Group 5 Elements = 13, 14, 15

---




5. Verify element boss (B) is fully seated through rotor base holes (C).

6. Install previously removed threaded strap (D) and supplied cap screws (E).

7. Tighten cap screws to specification.

   Item	Measurement	Specification
   Threshing Elements Cap Screws	Torque	87 ± 9 N·m (64 ± 7 lb.-ft.)

   IMPORTANT: Verify that elements are seated properly after tightening.

8. IMPORTANT: Rice threshing elements are taller than corn/grain threshing elements. Concave level must be adjusted.

   Adjust concave levelness. (See Concave Leveling in this section).

Separator Tines

1. IMPORTANT:

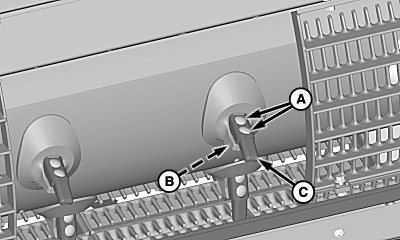

   H94733-UN-22SEP09

   A - Round Head Cap Screws

   B - Lock Nuts (2 used)

   C - Separator Tines

   Rotor is a balanced assembly. Tines must be replaced in pairs to maintain balance. When installing more than one kit, do not mix and match tines. Always use supplied cap screws. Tines that become loose may result in machine damage.

   Remove separator grates as needed to access separator tines. (See Concave Sections—Remove and Install.)

---




2. Inspect wear on separator tines using HXE30352 Clearance Gauge.

3. NOTE: For ease of removal, shift rotor gear case to neutral position.

   Remove and discard round head cap screws (A), nuts (B) and separator tines (C) as needed.

4. IMPORTANT:

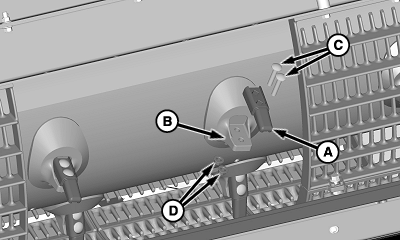

   H94751-UN-25SEP09

   A - Separator Tine

   B - Rotor Base

   C - Round Head Cap Screws

   D - Nuts

   Separator tines MUST be replaced in pairs to maintain proper balance.
   • 1-2
   • 3-4
   • 5-6
   • 7-8
   • 9-10
   • 11-12
   • 13-14
   • 15-16
   • 17-18
   • 19-20



   Install supplied separator tine (A) onto rotor base (B). (Use Separator Tine location diagram to identify separator tines).

---




5. Install supplied round head cap screws (C) and retain with nuts (D).

6. Tighten nuts to specification.

   Item	Measurement	Specification
   Tine Cap Screws	Torque	75 ± 11 N·m (55 ± 8 lb-ft)
