Chaffer/Sieve Adjusting Switch

IMPORTANT:

H97564
H97564-UN-14SEP10

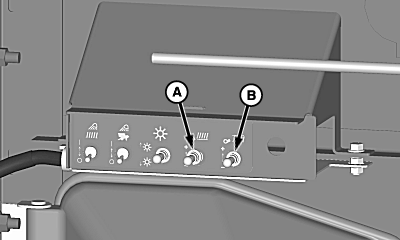

A - Chaffer Adjust Switch

B - Sieve Adjust Switch

Close chaffer/sieve louvers completely to prevent louver damage while removing chaffer/sieve.

NOTE: If equipped with self-leveling shoe, switches are used to tilt chaffer/sieve bays while in calibration mode.

Chaffer adjust switch (A) and sieve adjust switch (B) are located on left-hand side of machine.

Chaffer adjust switch and sieve adjust switch allows operator to open or close chaffer and sieve to various positions.
