Grain Tank Covers (If Equipped)—Adjusting

NOTE:

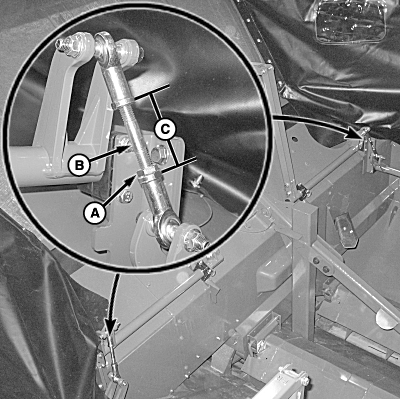

H96901
H96901-UN-15JUN10

A - Nut

B - Bolt

C - Nominal Distance, 64 mm (2-1/2 in.)

Only adjust turnbuckles on left-hand side of machine. Turnbuckles on right-hand side of machine are not adjustable.

Raise grain tank covers fully.

Loosen nut (A) and adjust bolt (B) until a nominal distance (C) is achieved between turnbuckle ends as shown.

NOTE: Increasing turnbuckle distance increases clearance between left cover and front/rear covers.

Decreasing turnbuckle distance decreases clearance between left cover and front/rear covers.

Tighten nut when distance is achieved.

Repeat as needed on remaining turnbuckle.
