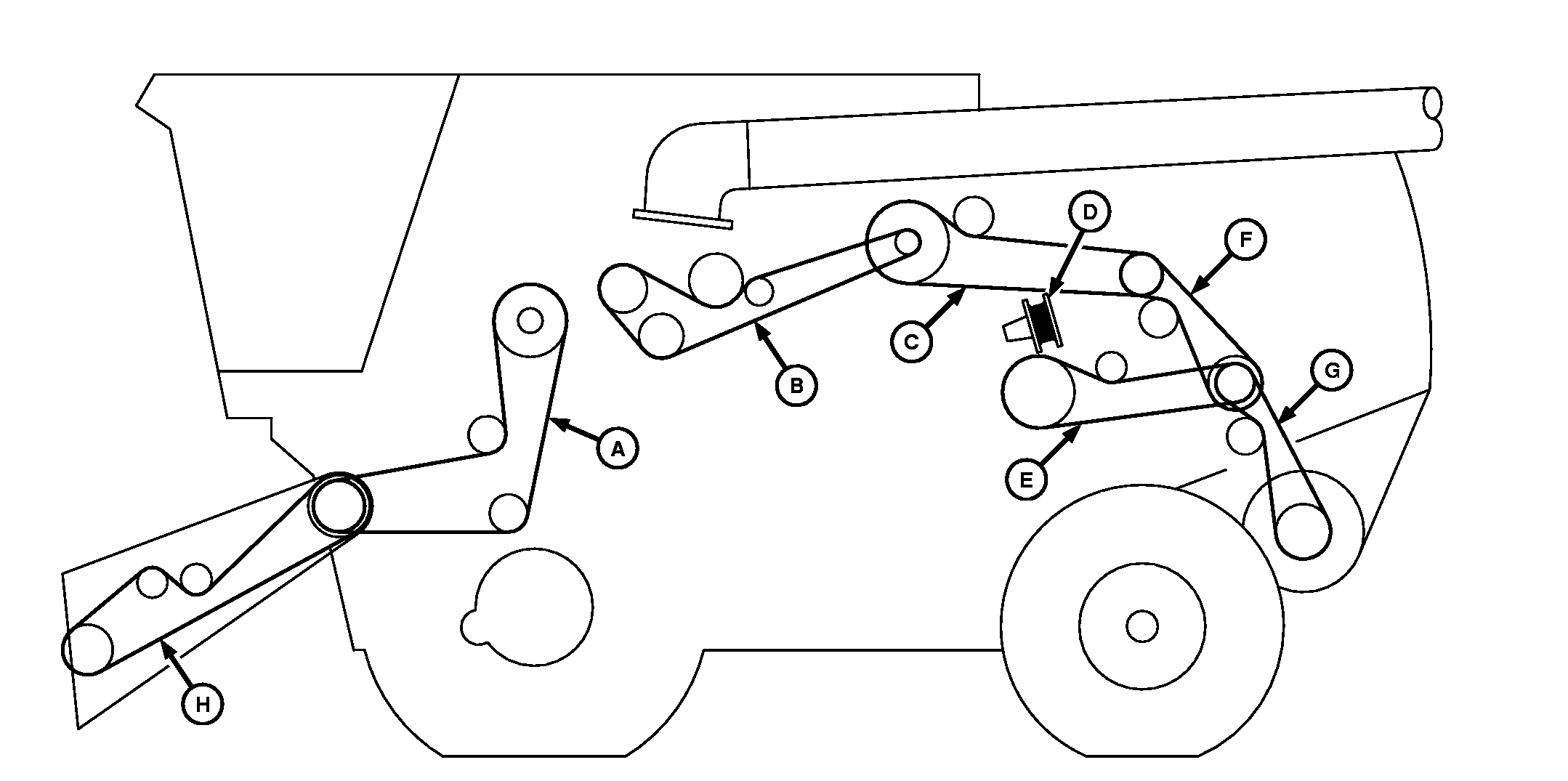

Drive Belts—Left-Hand

H96907-UN-16JUN10

A - Header and Reel Pump Standard/High Capacity/CommandTouch Multi-Speed Feeder House Drive (Optional) Belt

B - Unloading Auger System, #80 Roller Chain

C - Unloading Auger System Belt

D - Separator Variable Drive Belt

E - Discharge Beater Belts

F - Countershaft, Discharge Beater and Chopper Belt

G - Straw Chopper Belts

H - Fixed Speed Feeder House Drive Belt

H - Feeder House Variable Drive Standard/High Capacity Belt

H - CommandTouch Multi-Speed Feeder House Drive Belt (Option)
