Rethresher Drive Belt—Replacing

CAUTION:

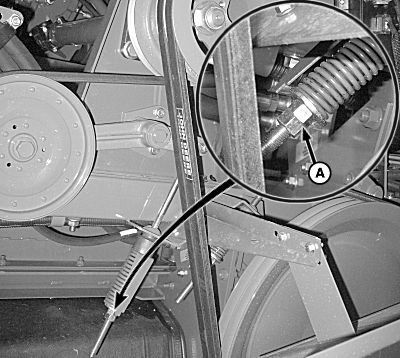

H97015-UN-22JUN10

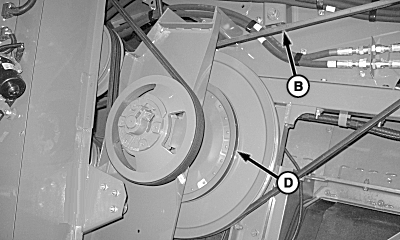

H97016-UN-22JUN10

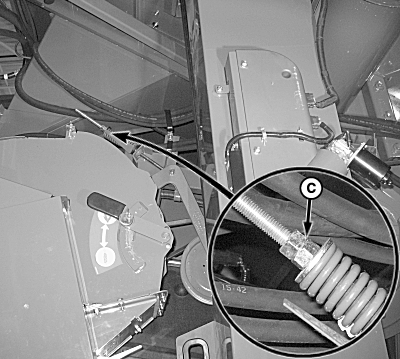

H97017-UN-13SEP10

A - Nuts

B - Rear Countershaft Belt

C - Nuts

D - Rethresher Drive Belt

Loosen nuts (A) and remove rear countershaft belt (B) from pulley.

Loosen nuts (C) and remove rethresher drive belt (D).

Install replacement belt and adjust tensioner until washer is positioned between end of gauge and bottom of step.

Install rear countershaft belt onto pulley and adjust tensioner until washer is positioned between end of gauge and bottom of step.
