Rethresher Wear Strips and Rasp Bars—Adjusting

CAUTION:

H97073
H97073-UN-13SEP10

A - Nuts

Shut OFF engine, set parking brake and remove key.

Loosen nuts (A) to relieve belt tension from rethresher drive belt.

H97958
H97958-UN-13SEP10

A - Nuts

B - Shield

C - Shields

Loosen nuts (A) and remove shields (B and C).

Remove drive chain to allow rethresher to turn freely.

NOTE:

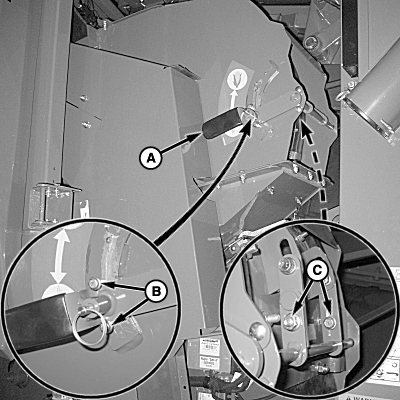

H97094
H97094-UN-13SEP10

A - Adjustment Handle

B - Cap Screws, M6

C - Cap Screws and Nuts

Moving adjustment handle downward zeros the position between wear strips and rasp bars.

Move adjustment handle (A) downward as shown and install cap screws (B) in existing holes.

Loosen cap screws and nuts (C).

Slowly adjust access door while rotating beater until ”ticking” is heard.

Slowly back off until ”ticking” stops and tighten cap screws and nuts.

Adjust rethresher drive belt tensioner until washer is positioned between end of gauge and bottom of step.

Install chain and adjust tensioner until washer is positioned between end of gauge and bottom of step.

Install previously removed shields.

OUO6075,0000814-19-20100914
