Rethresher Crop—Adusting

CAUTION:

H97103-UN-13SEP10

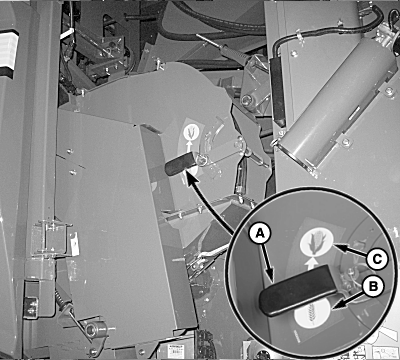

A - Handle

B - Small Grain Position

C - Large Grain Position

IMPORTANT: To prevent personal injury or machine damage do not move rethresher crop handle when machine is running.

NOTE: Refer to Crop Settings section for recommended rethresher settings.

Small Grain Position (B):

Crop diverter handle (A) should be in ”LOWER” position, when harvesting small grain crops.

Large Grain Position (C):

Crop diverter handle (A) should be in ”UPPER” position, when harvesting large crops or damage sensitive crops.
