Driving Machine on Roads

1.
   H94727-UN-27JAN10


   H96010-UN-05OCT10

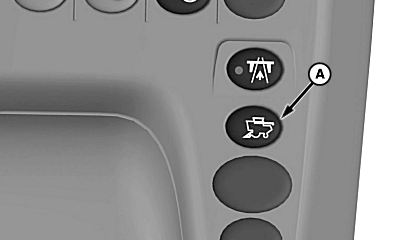

   A - Folding Functions Shortcut Switch

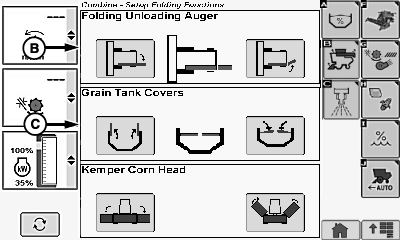

   B - Folding Unloading Auger

   C - Folding Grain Tank Covers

   Press folding functions shortcut switch (A) for direct navigation to the folding functions screen.

---




2. IMPORTANT: Verify that grain tank is unloaded before transporting machine on road.

   Touch or press and hold confirm switch when folding unloading auger icon (B) is highlighted.

   NOTE: Folding unloading auger is an automatic feature when icon is selected. Unloading auger begins to fold automatically when icon is selected.

3. CAUTION: Avoid power line entanglement. Grain tank covers must be closed before transporting machine.

   Grain Tank Covers (If Equipped):

   Touch or press and hold confirm switch when folding grain tank covers icon (C) is highlighted.

   NOTE: Covers automatically fold when desired icon is touched or confirm switch is pressed.

4.

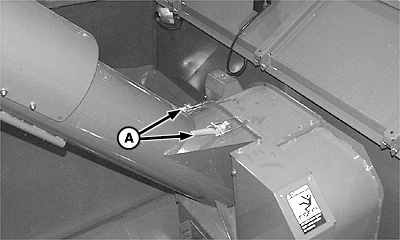

   H98815-UN-21OCT10

   A - Clamps

   Manual Fold Clean Grain Auger (If Equipped): Release clamps (A) and lower auger.

---




5.

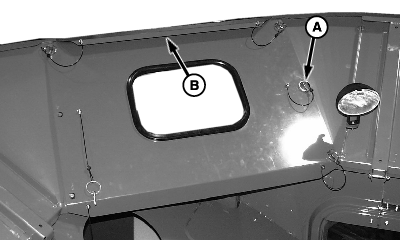

   H75331-UN-26FEB03

   Front Grain Tank Extension Shown

   A - Quick-Lock Pins

   B - Grain Tank Extensions

   Grain Tank Extensions (If Equipped):

   1. Remove quick-lock pin (A) from grain tank extensions (B).

   ---




   2.

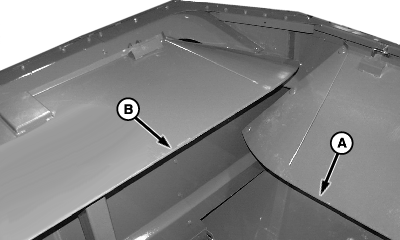

      H75332-UN-26FEB03

      A - Front and Rear Grain Tank Extensions

      B - Left-Hand and Right-Hand Grain Tank Extensions

      Fold front and rear grain tank extensions (A) first, then fold left-hand and right-hand grain tank extensions (B) last to reduce overall height.

---




6. CAUTION:


   H96869-UN-11JUN10

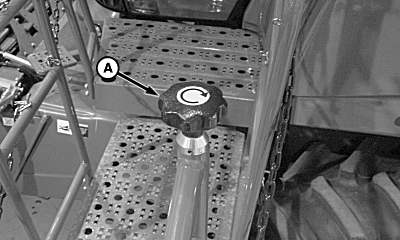

   A - Handle

   Swing ladder to the full forward position to reduce machine width and to orient warning light toward oncoming motorists.

   IMPORTANT: Travel at a reasonable speed for road or field conditions. Never transport on the road with grain in the tank. Always use warning lights.

   Follow local regulations for equipment size, lighting, and marking before driving on public roadways.

   Use handle (A) to unlock ladder and swing fully forward.

---




7. Fold radio antenna down and retain with hook (if equipped). If hook is not available, retain antenna to cab roof with tape.

8.

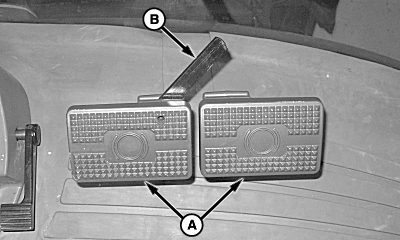

   H96681-UN-01JUN10

   A - Pedals

   B - Lock

   Lock brake pedals together with lock (B) when driving on roads. Leave pedals (A) unlocked for field operation.

---




9. CAUTION: Use seat belt whenever operating machine or riding as an observer.

   Fasten seat belt.

10. CAUTION: Sound horn before starting engine to clear people away from machine.

    Sound horn and start engine. Use cold weather starting aid if needed.

11.

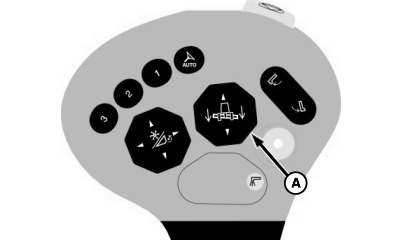

    H96011-UN-01NOV10


    H61170-UN-04OCT99

    A - Header Raise/Lower Switch

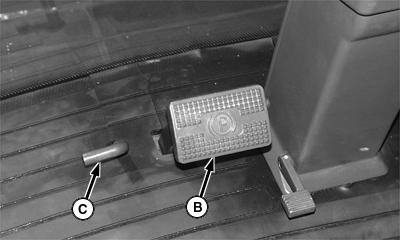

    B - Parking Brake

    C - Pedal

    Raise header with header switch (A).

---




12. Non ProDrive Machines: Disengage parking brake (B) with pedal (C).

13. NOTE:


    H96012-UN-13APR10

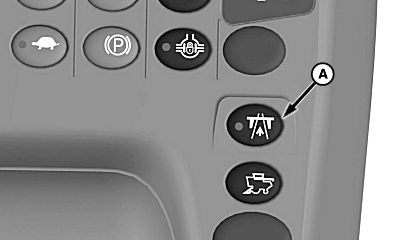

    A - Road Transport Disconnect Switch

    After transporting machine, press road transport disconnect switch for two seconds allowing indicator light to turn OFF and allowing desired switch functions to operate.

    Engage road transport disconnect switch (A).

---




14. CAUTION:

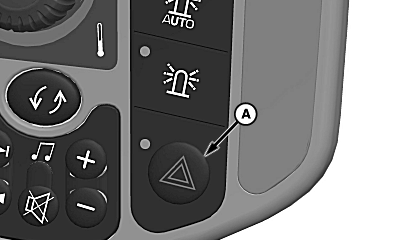

    H96013-UN-13APR10

    A - Beacon/Hazard Light Switch

    When transporting on a road or highway, flashing warning lights and taillights on both sides provide a warning to operators of vehicles approaching from the front and rear. These warning lights must be turned ON when driving the machine on a public road. Swing cab ladder fully forward to orient warning lights towards oncoming motorists. Do not operate flashing warning lights if prohibited by law.

    Turn beacon/hazard light switch (A) ON for both daytime and nighttime road travel. Warning lights automatically operate when hazard lights are ON.

---




15.

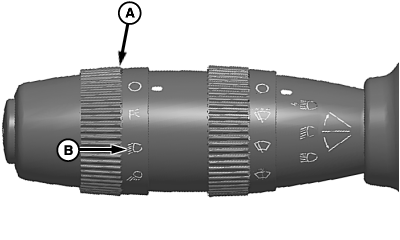

    H96014-UN-26APR10

    A - Selection Switch

    B - Road Lights Switch

    Use selection switch (A) to turn ON road lights (B) for nighttime travel.

---




16. NOTE: Turn signal indicators on cornerpost display illuminate to indicate a turn.

    Use turn signals as needed. They are not self canceling.

17.

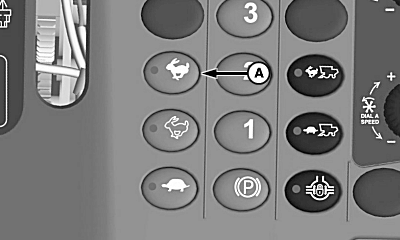

    H96015-UN-13APR10

    A - Engine Speed Switch

    Press engine speed switch (A) for maximum engine speed.

---




18. NOTE: For field operation, select a gear according to working conditions.

    Non ProDrive Machines: Engage 3rd gear for road travel.

19. CAUTION: If transporting machine with header attached, travel at a reasonable speed to ensure adequate braking performance and control of machine.

    Slowly move multi-function lever forward or rearward. When coming to the top of a hill, pull back on multi-function lever before starting down the other side.
