Moisture Sensor and Mass Flow Sensor
H97182-UN-30JUN10
H97183-UN-30JUN10

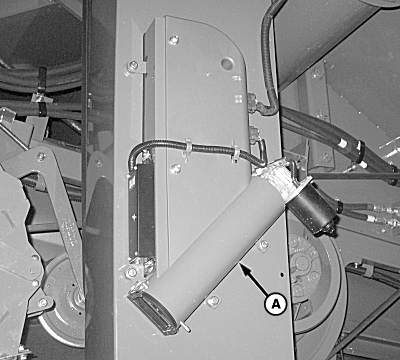

A - Moisture Sensor

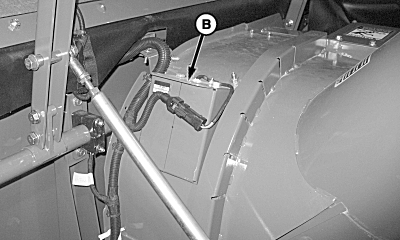

B - Mass Flow Sensor
Moisture sensor (A) is located on the clean grain elevator. The sensor continuously measures the moisture of a small sample of the grain as it is conveyed through the clean grain elevator.Mass flow sensor (B) is located on the clean grain elevator housing inside the grain tank. Harvested grain discharged from the clean grain elevator deflects onto the impact plate. Mass flow sensor converts the force of the grain into an electronic impulse corresponding to the wet-yield unit/area unit.
OUO6075,0000836-19-20100630 |
