Rethresher Tailings Elevator Sensors

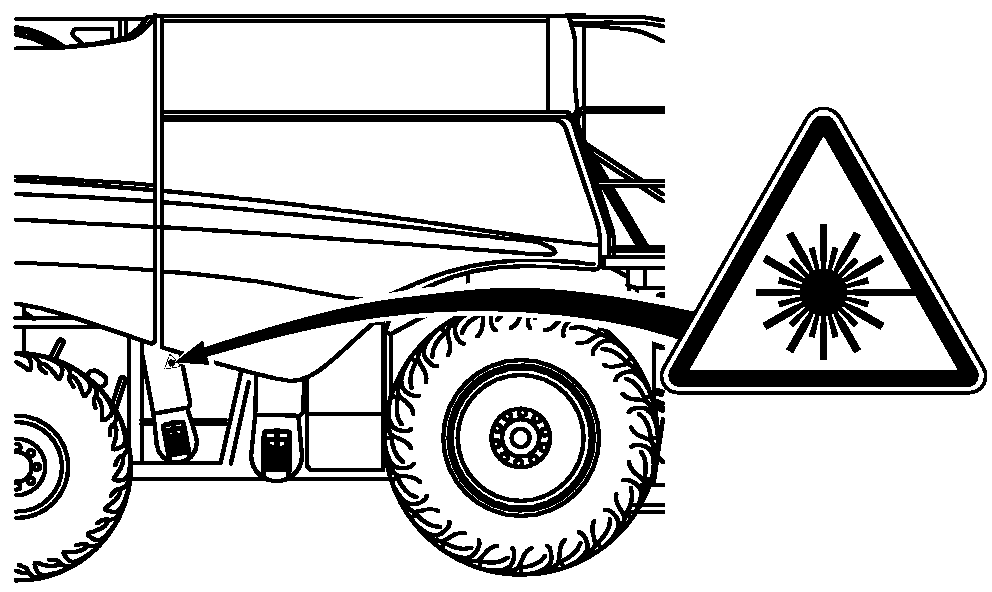

CAUTION:

H96730-UN-09AUG10

H97320-UN-08JUL10

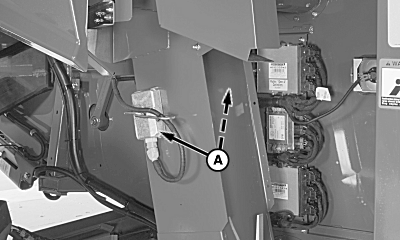

A - Tailings Sensors

When servicing or removing the tailings sensors, use caution and do not view beam directly with optical instruments.

Key switch must be turned OFF or tailings sensor must be unplugged before servicing or removing sensors.

Remove tailings sensors (A) to inspect and clean lenses if needed.

If lenses are clean, remove and check for dust. If dust is found, completely clean area and reassemble lens onto unit making sure that gasket is sealing.

If display continues to read full or empty, contact your John Deere dealer.

Replace sensor and test system.
