As Required

1.
   H96439-UN-04AUG10


   H97476-UN-30JUL10


   H97477-UN-02AUG10


   H97364-UN-02AUG10

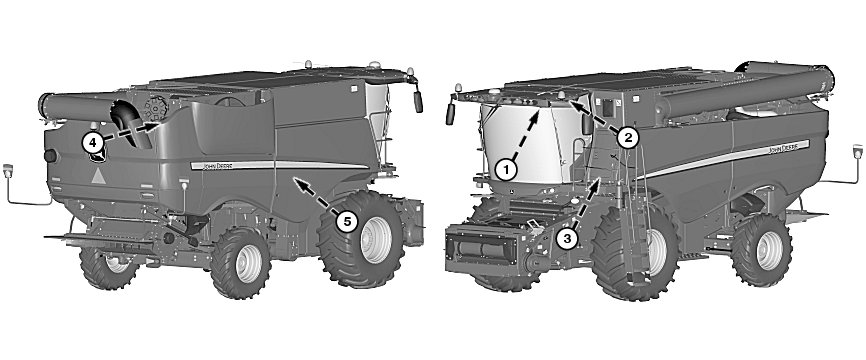

   A - Recirculating Filter

   B - Knob

   C - Fresh Air Filter

   D - Reservoir Cap

   E - Moisture Sensor Module

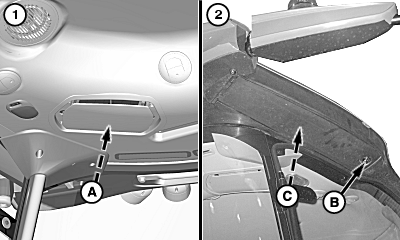

   Recirculating Filter - Remove cover to clean or replace recirculating filter (A).

---




2. Cab Fresh Air Filter - Turn knob (B) and lower access cover. Remove fresh air filter (C) to clean or replace as needed.

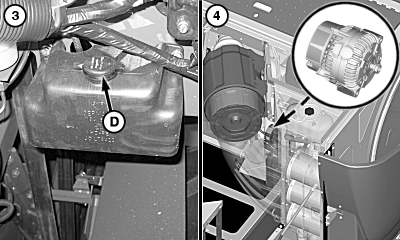

3. Windshield Washer Reservoir - Open cap (D) and fill windshield washer reservoir as needed.

4. Alternator(s) Screen - Clean screen when 50% covered with debris.

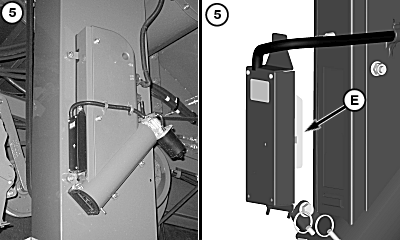

5. IMPORTANT: Static electricity can damage the moisture sensor module when touching the sensing plate. To avoid damage, ensure that you always touch a metal surface on the machine with at least one hand or arm before working on or cleaning the moisture sensor module.

   Moisture Sensor – Remove and clean moisture sensor module (E) when operating in weeds, green crops, or very small grains (canola).
