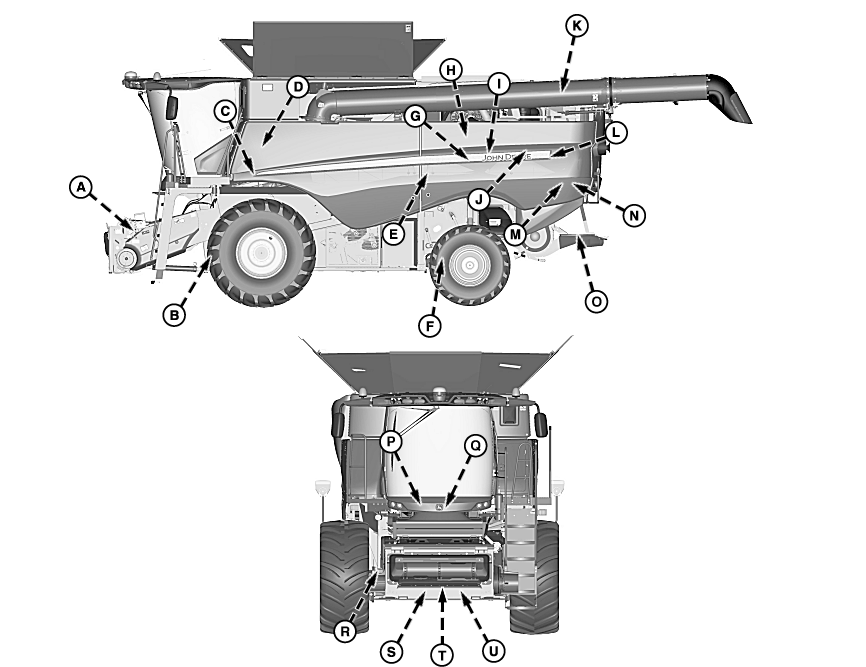

Hydraulic Component Locations

NOTE:

H97425-UN-07DEC10

A - Reel Function Control Valve Block

B - Header Height Control Valve Block

C - Feeder House Reverser/Reel Drive Valve Block

D - CommandTouch Multi-Speed Feeder House Valve Block

E - Primary Control Valve Block

F - Four-Wheel Drive Valve Block (If Equipped)

G - Variable Speed Engine Fan Control Valve (Interim Tier 4/Stage III B)

H - Main Engine Gearcase Valve Block

I - Hydrostatic Pump

J - Main Engine Gearcase Pump

K - Hydraulic Reservoir

L - Variable Flow Pump

M - Single or Dual Spreader Control Valve Block (If Equipped)

N - Return Manifold Block

O - Advanced PowerCast Tailboard (If Equipped)

P - Service Brake Control Valve Block

Q - Steering Hand Pump/Electro-Hydraulic Valve

R - Chassis Tilt Valve Block (HillMaster Machines)

S - Transmission Control Valve Block (ProDrive/Push Button Shift Transmission Machines)

T - Proportionator Pump/Motor

U - Hydrostatic Motor
