Hydraulic Accumulator Locations

CAUTION:

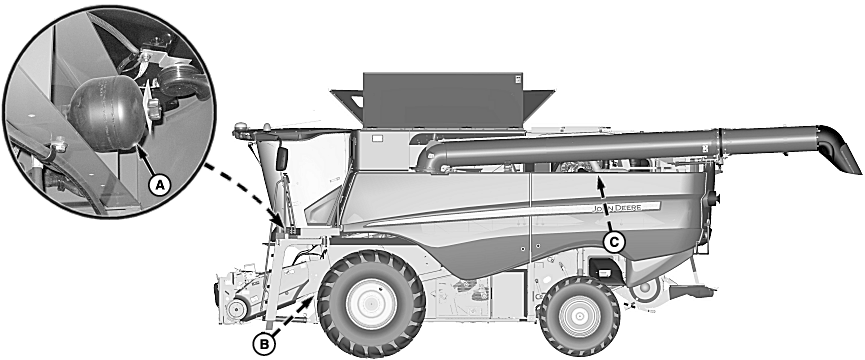

H97431
H97431-UN-07DEC10

Avoid serious injury from contact with hydraulic oil and gas under pressure. Before removing hydraulic components, disassembling or charging accumulators:
  1. Relieve system hydraulic pressures. Refer to Operator Manual and Repair Manual for system information.
  2. Stop engine and remove key.

Use only DRY NITROGEN for recharging accumulator. See your John Deere dealer.

Accumulator functions as a precharged reservoir, so that when hydraulic functions are activated it helps to maintain instantaneous pressure and flow.

  • Brake Charging Accumulator (A)
  • ProDrive Transmission Accumulator (If Equipped) (B)
  • Main Engine Gearcase Accumulator (C) (If Equipped)

Accumulators are maintenance-free and cannot be repaired if damaged. See your John Deere dealer for further information.

OUO6075,00008BB-19-20101207
