Hydraulic Reservoir—Filling

CAUTION:

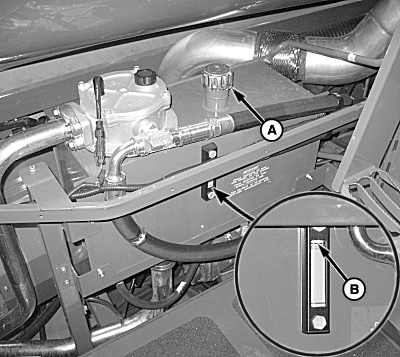

H97574
H97574-UN-10AUG10

A - Cap

B - Sight Glass

Shut OFF engine, set parking brake and remove key.

NOTE: Refer to Specifications section for hydraulic reservoir oil capacity.

Clean area around cap (A) before removing to prevent system contamination. Fill hydraulic reservoir until oil level is at top of sight glass (B) with feeder house fully lowered.

OUO6075,00008D4-19-20100810
