Every 1000 Hours

NOTE:

H97617
H97617-UN-12AUG10

H97618
H97618-UN-12AUG10

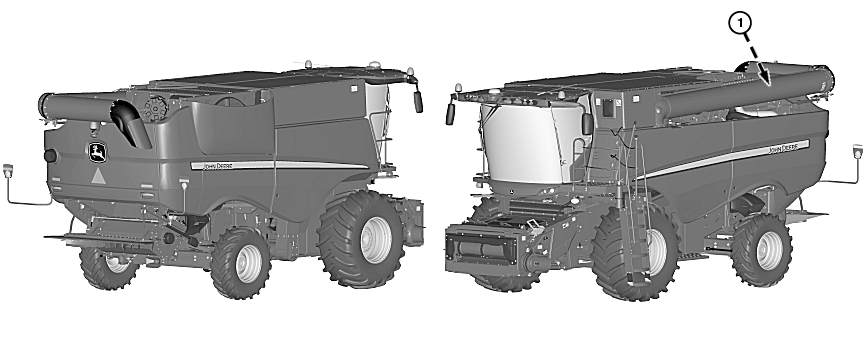

A - Filter

Clean area around filter cap before removing to prevent system contamination. It is not necessary to drain system when replacing filter.

1. Hydraulic Reservoir Filter - Remove and replace filter (A) when performance decline is noticed or diagnostic trouble code is generated (see Hydraulic Reservoir Filter—Replacing in Hydraulic System section.)

OUO6075,00008D5-19-20100819
