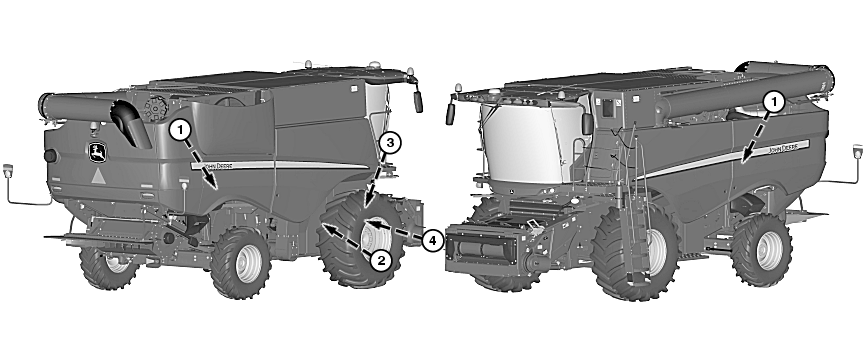

Every 400 Hours

  1. H97685
    H97685-UN-19AUG10

    H97683
    H97683-UN-19AUG10

    H86798
    H86798-UN-06NOV06

    A - Primary Countershaft Bearing

    B - Separator Bearing

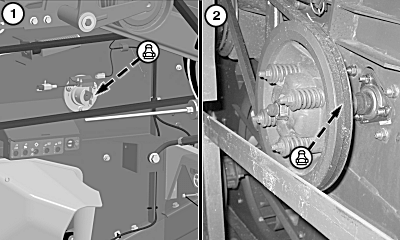

    Overshot Beater Bearings (Optional) - Grease fitting (both sides).


  2. Conveyor Auger Drive Slip Clutch - Rotate sheave assembly to access fitting. Do not over grease.

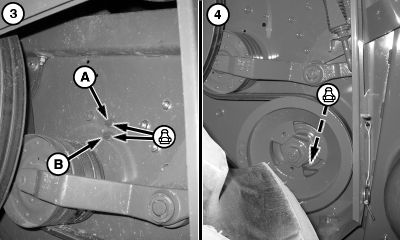

  3. Right-Hand Side Lube Bank - Grease fittings to lubricate primary countershaft bearing (A) and separator bearing (B).

  4. Feed Accelerator Bearing (Right Side) - Rotate sheaves to access fitting.

OUO6075,00008E8-19-20100819
