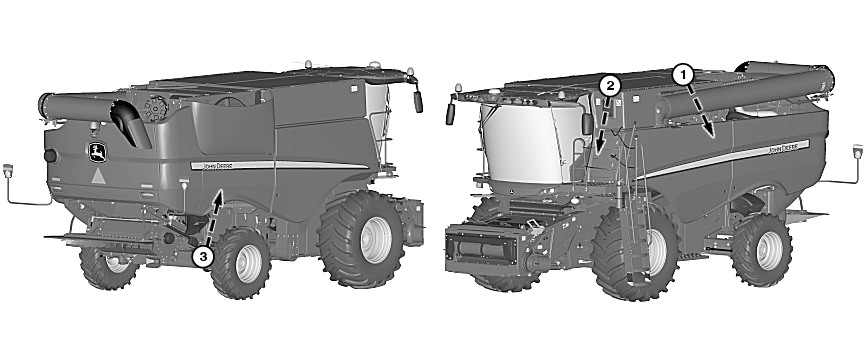

Every 2000 Hours

1.
   H97689-UN-19AUG10


   H97678-UN-18AUG10


   H97679-UN-18AUG10


   H97690-UN-19AUG10

   A - Cap

   B - Drain Valve

   C - Dipstick

   D - Cap

   E - Dipstick

   F - Plug

   G - Plug

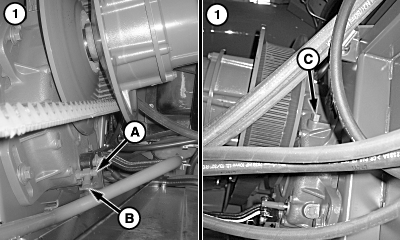

   Separator Drive Oil - Remove cap (A) and attach hose to drain valve (B). Open valve to drain. Refill at dipstick (C) as needed.

---

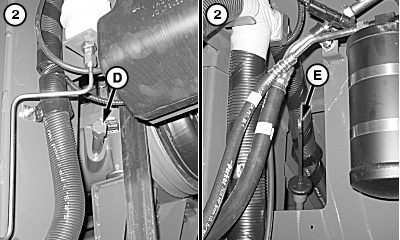

2. Primary Countershaft Gearcase Oil (Fixed Speed Feeder House) - Drain at cap (D) and refill at dipstick (E). Oil level must show on knurled part of dipstick.

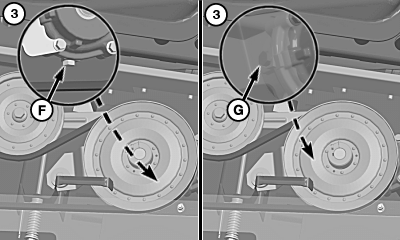

3. Overshot Beater Gearcase Oil (Optional) - Drain at plug (F) and refill at plug (G). Oil level must be level with plug hole on side of gearcase.
