Every 1000 Hours

1.
   H97695-UN-19AUG10


   H97693-UN-25AUG10


   H97694-UN-25AUG10

   A - Plugs

   B - Plug

   C - Filter

   D - Dipstick

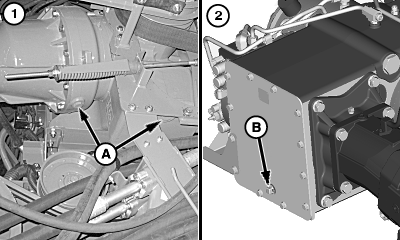

   Engine Power Take-Off Gearcase - Drain oil at plugs (A).

---




2. Transmission Oil - Drain oil at plug (B).

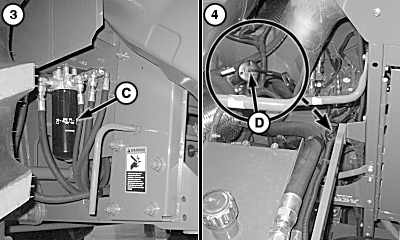

3. ProDrive/Main Engine Gearcase Lube Filter - Remove and replace filter (C). Coat seal on filter with oil. Hand tighten, then tighten 1/2 turn more.

4. NOTE: Overfilling engine power take-off gearcase may cause oil to force dipstick tube out when machine is running.

   Fill Engine Power Take-Off Gearcase

   1. Fill until oil is at bottom line on dipstick (D).
   2. Install dipstick and run engine for one minute minimum.
   3. Shut OFF engine and let machine sit for five minutes allowing air to settle from oil.
   4. Remove dipstick and check oil level. Add oil until oil level is at top line on dipstick.
   5. Repeat procedures until oil level remains at top line on dipstick.
