Rethresher Drive Chain—Adjusting

CAUTION:

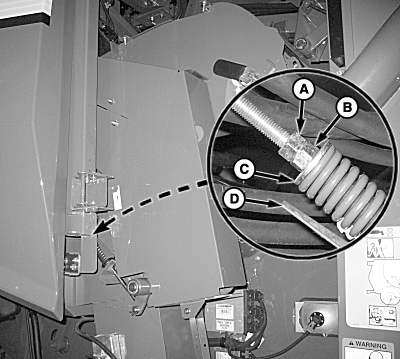

H97957
H97957-UN-13SEP10

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set parking brake and remove key.

Loosen nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,00009AD-19-20100913
