Rethresher Drive Chain—Replacing

CAUTION:

H97958
H97958-UN-13SEP10

A - Nuts

B - Shield

C - Shields

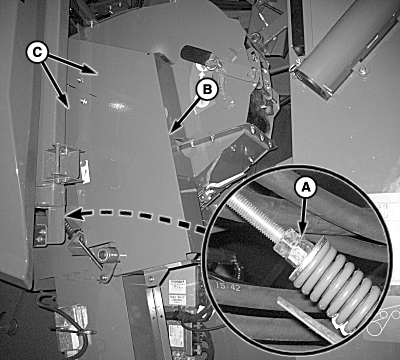

Shut OFF engine, set parking brake and remove key.

Loosen nuts (A) and remove shields (B and C).

H97963
H97963-UN-13SEP10

A - Offset Link

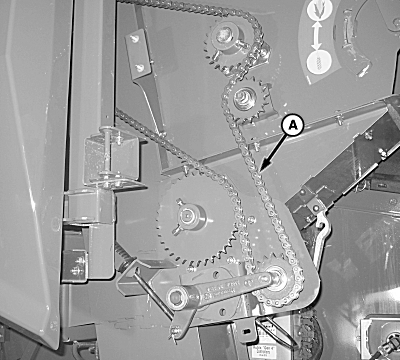

Remove offset link (A) for initial chain adjustment.

Remove another offset link for second adjustment. When adjustment is used up from second adjustment, chain is worn out and should be replaced.

Install replacement chain and adjust tensioner until washer is positioned between end of gauge and bottom of step.

Install previously removed shields.
