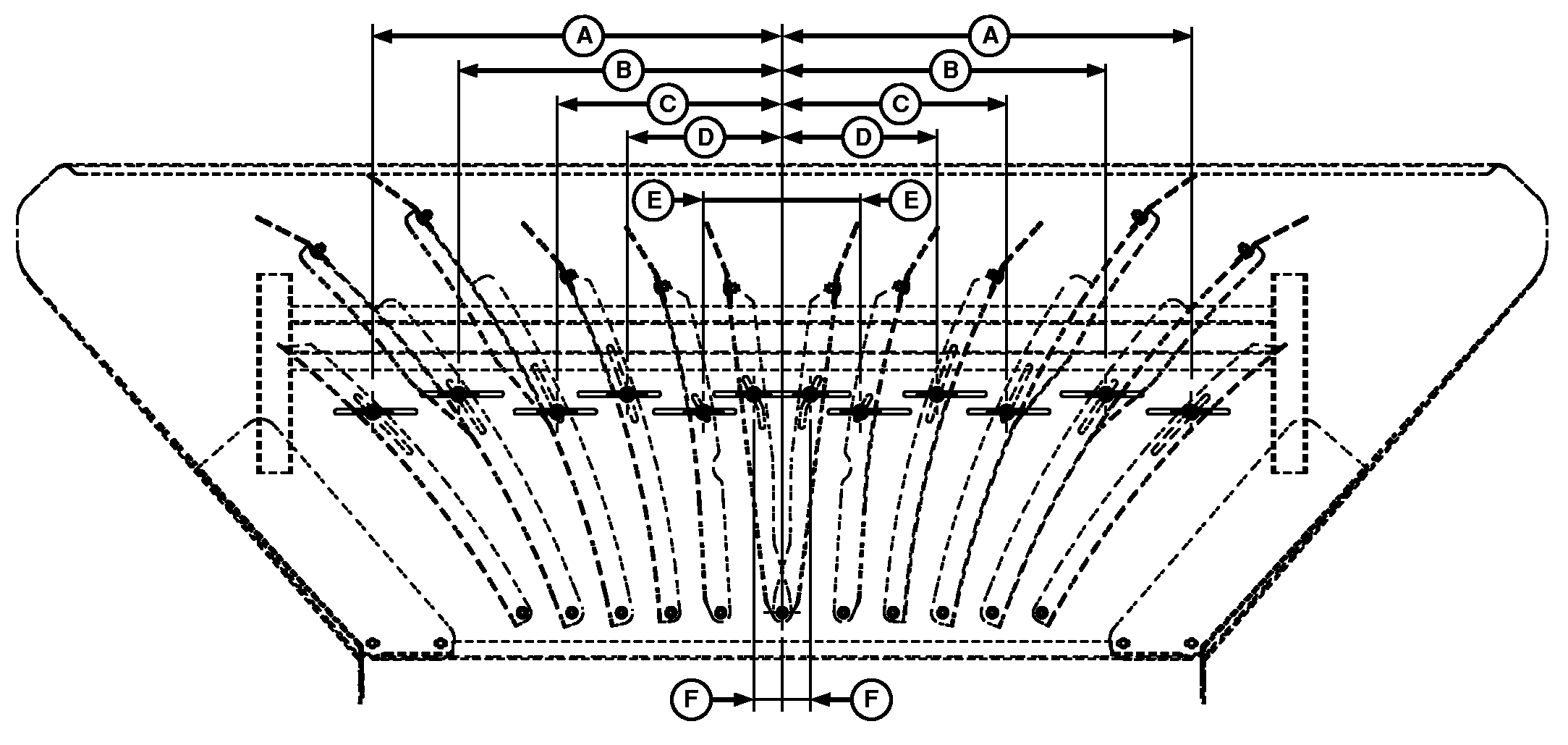

Chopper Vanes (Manual Adjust)—Factory Settings

H87746-UN-29MAR07

Chopper Settings For 9.1 m (30 ft.) Platforms

A - 693 mm (27.3 in.)

B - 548 mm (21.6 in.)

C - 382 mm (15 in.)

D - 262 mm (10.3 in.)

E - 133 mm (5.2 in.)

F - 48 mm (1.9 in.)
