Chopper Vanes (Electrical Adjust)—Factory Settings

NOTE:

H87748
H87748-UN-29MAR07

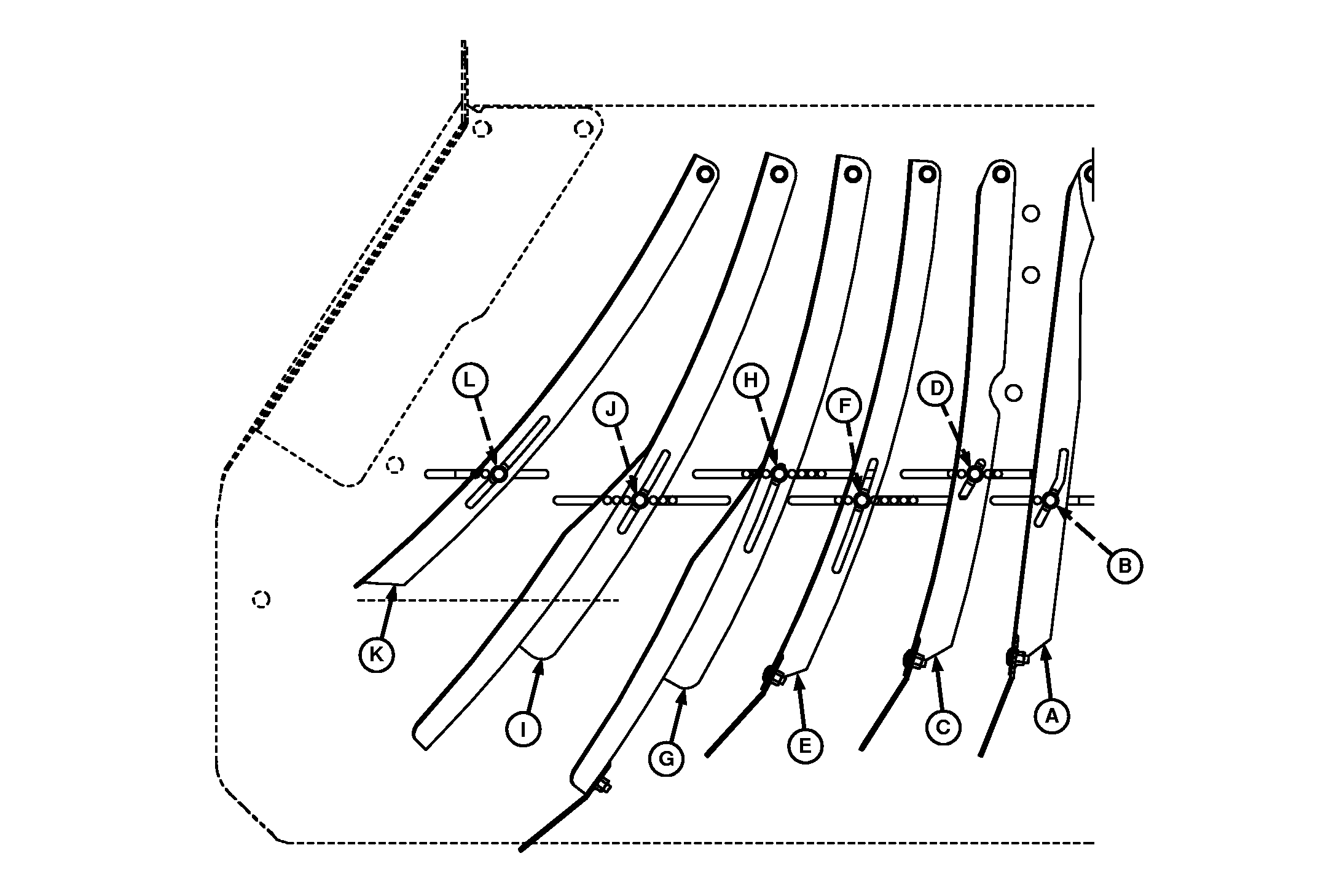

Chopper Settings For 9.1 m (30 ft.) Platforms (View From Below Chopper)

A - Vane 1

B - Second Hole

C - Vane 2

D - Third Hole

E - Vane 3

F - Sixth Hole

G - Vane 4

H - Fifth Hole

I - Vane 5

J - Fourth Hole

K - Vane 6

L - First Hole

Hole locations are from center of chopper outward when adjusting chopper vanes.

If 7.6 m (25 ft.) spread width pattern is desired, see your John Deere dealer for further information on an optional kit.
