Chopper Drive Speeds—Changing

CAUTION:

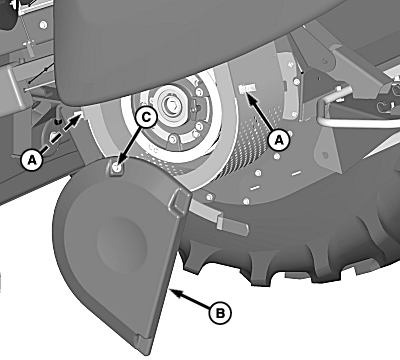

H98149-UN-21SEP10

A - Latches

B - Shield

C - Pivot

Release latches (A) and rotate shield (B) on pivot (C).

Slow Speed Position:

NOTE: It may be necessary to rotate sheave a small amount while moving shifter handle.

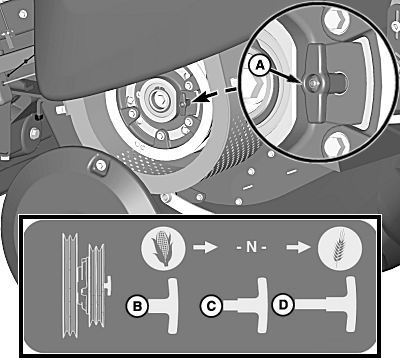

H98150-UN-21SEP10

A - Shifter Handle

B - Slow Speed Position

C - Neutral Position

D - High Speed Position

• Corn

Neutral Position:

NOTE: It may be necessary to rotate sheave a small amount while moving shifter handle.

Move shifter handle (A) to position (C).

High Speed Position:

NOTE: It may be necessary to rotate sheave a small amount while moving shifter handle.

Move shifter handle (A) to position (D).

• Grain

Close shield and retain with latches.
