Chopper Vanes (Electrical Adjust)—Factory Settings

NOTE:

H98343
H98343-UN-01OCT10

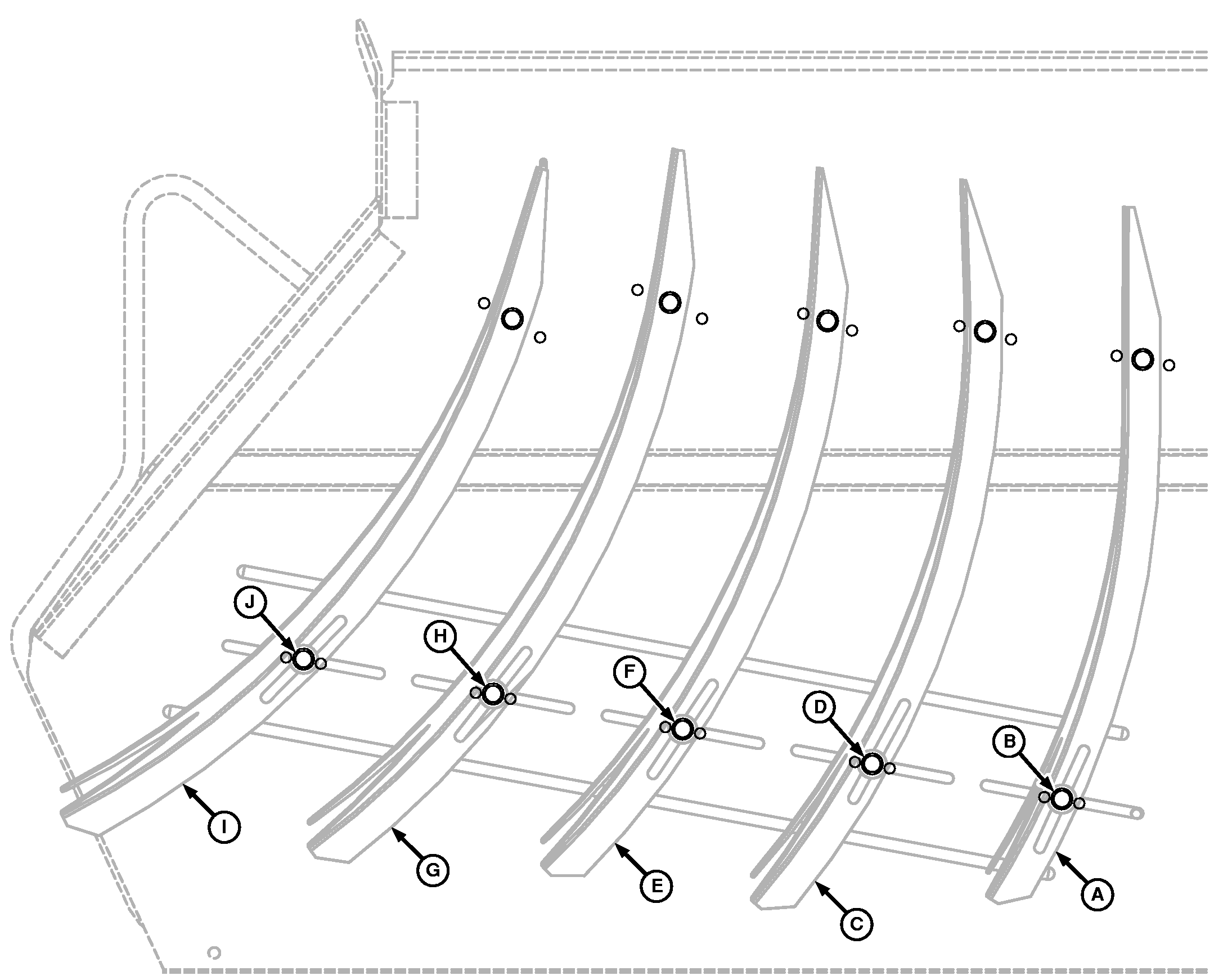

Chopper Settings For 9.1 m (30 ft.) Platforms (View From Below Chopper)

A - Vane 1

B - Middle Hole

C - Vane 2

D - Middle Hole

E - Vane 3

F - Middle Hole

G - Vane 4

H - Middle Hole

I - Vane 5

J - Middle Hole

Hole locations are from center of chopper outward when adjusting chopper vanes.

If 7.6 m (25 ft.) spread width pattern is desired, see your John Deere dealer for further information on an optional kit.

OUO6075,00009EB-19-20100930
