Overshot Beater Belt (If Equipped)—Replacing

CAUTION:

H98550
H98550-UN-12OCT10

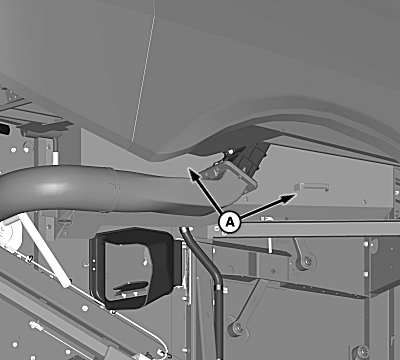

A - Shields

Shut OFF engine, set parking brake and remove key.

Remove cap screws and shields (A) from right-hand rear of machine.

H98551
H98551-UN-12OCT10

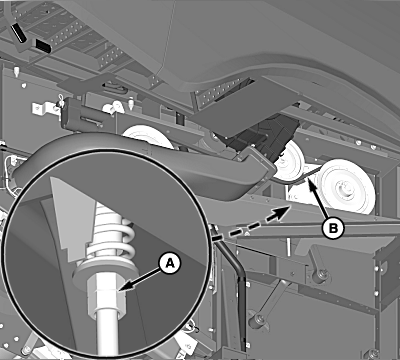

A - Nuts

B - Overshot Beater Belt

Loosen nuts (A) and remove belt (B) from sheave.

Install replacement belt and adjust tensioner until washer is positioned between end of gauge and bottom of step. Tighten lock nut.

Install shields and retain with cap screws.
