Overshot Beater (If Equipped)—Wing Replacing

CAUTION:

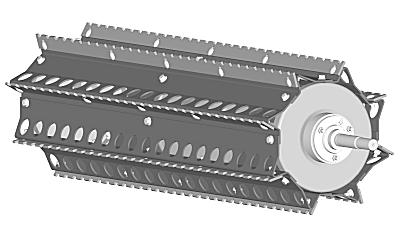

H98552-UN-12OCT10

H98553-UN-14OCT10

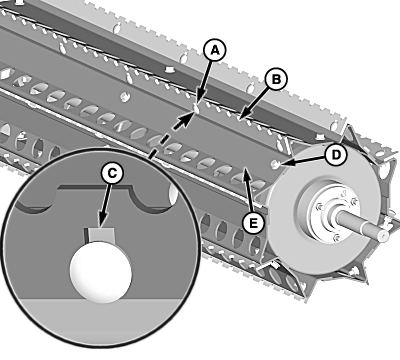

A - Round Head Bolt(s)

B - Overshot Beater Wear Strip

C - Notch

D - Cap Screws

E - Overshot Beater Wings

NOTE: Wings can be reversed for additional wear.

Overshot beater wings and wear strips can be replaced without removing the overshot beater. Replace overshot beater wings in sets of two and opposite of each other to maintain proper balance.

NOTE: If overshot beater is removed from machine, or has been serviced, tighten clamp bolts before securing wings. Tighten cap screws to specification.

Remove round head bolts (A) and replace overshot beater wear strips (B) as required.

Adjust overshot beater wear strips outward until at end of notch (C) as shown.

Tighten round head bolts to specification.

Item	Measurement	Specification
Overshot Beater Wear Strip Round Head Bolts	Torque	79 N·m (58 lb.-ft.)

Remove cap screws (D) and replace overshot beater wings (E) as required. Tighten cap screws to specification.

Item	Measurement	Specification
Overshot Beater Wing Cap Screws	Torque	79 N·m (58 lb.-ft.)
