Chopper Vane Angle Adjust—Operating (If Equipped)

H94677
H94677-UN-27JAN10

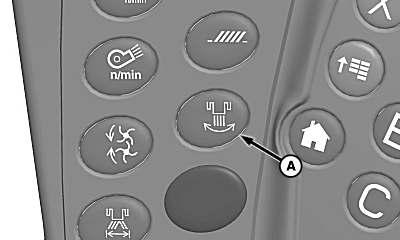

A - Chopper Vane Angle Adjust Switch

Chopper vane adjust switch (A) adjusts direction of chopper vanes from inside cab.

See Chopper Vane Angle Adjust Switch in CommandTouch Armrest Console section for further information.

OUO6075,0000A2D-19-20101019
