Discharge Swap Switch—Operating (If Equipped)

H94672
H94672-UN-27JAN10

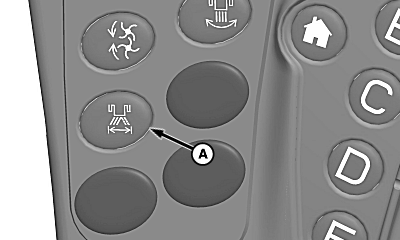

A - Discharge Swap Switch

Discharge swap switch (A) automatically adjusts spreader speeds by speeding up or slowing down spreader disks.

See Discharge Swap Switch in CommandTouch Armrest Console section for further information.

NOTE: Example: If wind is blowing chaff or straw towards uncut crops or operator has reached end row and travels back the opposite direction, press switch to allow spreader speeds to automatically adjust.

OUO6075,0000A2F-19-20101019
