Chopper Access Door

CAUTION:

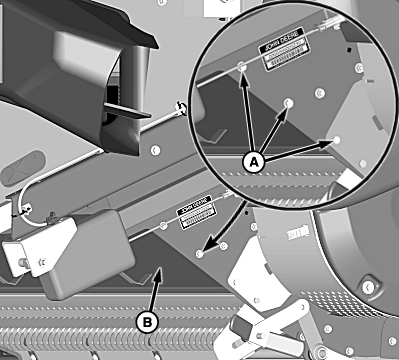

H98689
H98689-UN-19OCT10

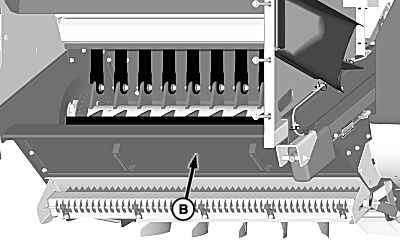

H98690
H98690-UN-19OCT10

A - Cap Screws

B - Access Door

Shut OFF engine, set parking brake and remove key.

Remove cap screws (A) from both sides of chopper to remove access door (B).

OUO6075,0000A30-19-20101020
