Middle Splitter Knife—Replacing

CAUTION:

H98691
H98691-UN-19OCT10

H98692
H98692-UN-19OCT10

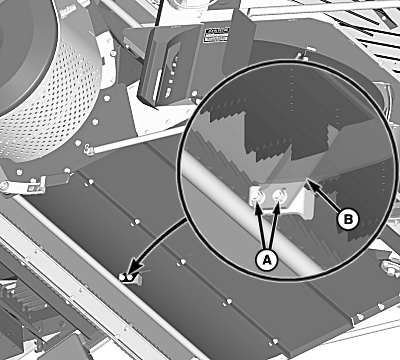

A - Hardware

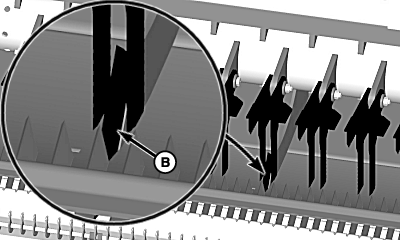

B - Middle Splitter Knife

Shut OFF engine, set parking brake and remove key. Knife blade is sharp.

Remove hardware (A) and discard middle splitter knife (B).

NOTE: Knife must be seated against middle splitter so no gap exists.

Replace middle splitter knife and install previously removed hardware.

OUO6075,0000A31-19-20101020
